Understanding FIPFG Machine Equipment Fundamentals
Core Principles of Formed-In-Place Foam Gasket Technology
FIPFG technology basically works by applying a liquid foam compound that expands and hardens into a custom seal. What makes this approach stand out is how well it fills those tricky gaps between parts while adapting perfectly to whatever shape it needs to fit against. Traditional gaskets just can't match that kind of flexibility or sealing power. Behind all this magic lies a simple yet precise chemical reaction when we mix together two liquids usually called polyol and isocyanate. These substances combine to create the actual foam material. Getting the right mix ratio matters a lot here because even small mistakes during blending can ruin the whole sealing effect. That's why most manufacturers invest heavily in equipment that ensures consistent quality every single time they apply these foams.

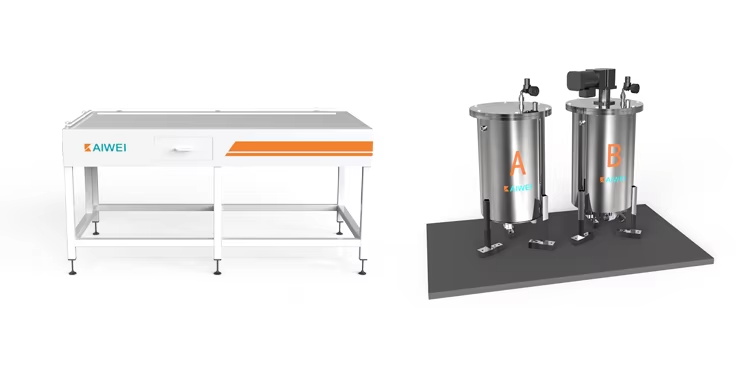

Key Components in FIPFG Machinery
The FIPFG equipment has multiple key parts that keep the sealing process accurate and efficient. The mixing head stands out as one of the most important components since it blends liquid materials properly, something absolutely necessary for getting the right chemical reactions going. Dispensing valves matter too because they let operators control exactly how much foam gets applied and at what speed, making sure everything comes out just right. Temperature and pressure settings also need careful attention throughout the whole operation. If these parameters aren't maintained correctly, the foam won't expand properly or cure as expected. Getting this balance right means the foam can reach maximum effectiveness when applied, resulting in consistently good seals across different applications.
How FIPFG Machine Equipment Operates
Step-by-Step Process of Foam Gasket Application
Getting familiar with how FIPFG machines work makes all the difference when applying gaskets properly, and there are several key steps involved in the process. First things first, the surfaces needing sealing must be thoroughly prepped, cleaned up good, and stripped of anything that could mess with the bond between materials. After cleaning comes the important part where the CNC dispensing unit gets positioned just right. The machine figures out exactly how much material needs to come out depending on what's being worked on, so the dispensing happens with pinpoint accuracy most of the time. Then comes the mixing and dispensing stage where the foam starts expanding as soon as it hits the area, forming the actual gasket while everyone watches. What makes this method work so well is that the foam adapts to whatever shape it meets, creating a seal that really sticks where it matters most.
Role of CNC Automation in Precision Dispensing
CNC automation has become essential for dispensing foam gaskets accurately, bringing many benefits to manufacturers. When automated, these systems can trace intricate patterns and contours precisely, so each gasket gets placed exactly where it should be. The biggest advantage? Less mistakes from humans and better repeatable results on the production line something that really matters when trying to maintain quality standards consistently. What's interesting about CNC machines is their flexibility they can handle all sorts of design changes just by updating the programming code. This adaptability works well with FIPFG technology, making it suitable for everything from automotive assembly lines to medical device manufacturing wherever getting those gaskets right matters most for product performance.
Applications of FIPFG Technology in Modern Manufacturing
Automotive Industry: Sealing Modules and Structural Components
FIPFG tech plays a major role in the auto industry when it comes to making strong seals for all sorts of parts including car doors, window frames, and those little electronic boxes under the hood. What makes this tech so good? Well, it creates really tight seals that last longer because they keep out rain, snow, and other nasty weather stuff while also cutting down on road noise inside the cabin. Drivers definitely notice the difference. According to recent numbers, around 30 percent of car makers now use FIPFG methods for their sealing needs. That shows just how much this approach has caught on across the industry as companies look for ways to make vehicles both quieter and more durable over time.
Electronics: Encapsulation and Dust Protection
FIPFG tech provides good protection for electronics by wrapping up those delicate parts and keeping out moisture and dust particles. The special foam creates a strong shield that makes gadgets last longer and work better, something manufacturers really care about when making phones and other consumer gear. Some tests indicate that switching to FIPFG instead of older protection techniques cuts down on failures by around 20 percent. For companies trying to build products that stand the test of time without breaking down, these numbers matter a lot. When looking at how well things hold up in real world conditions, FIPFG seems to be giving electronic components exactly what they need to keep functioning properly throughout their expected lifetime.
Advantages of FIPFG Over Traditional Sealing Methods
Material Efficiency and Reduced Waste
One major benefit of FIPFG systems lies in their material efficiency. These systems apply foam exactly where it's needed, no more no less, which cuts down on wasted product. Traditional gasket systems tell another story entirely. They need lots of cutting and trimming during installation, often resulting in leftover materials that just get thrown away. With FIPFG, the seals created match the design specs almost perfectly every time. Companies that switch over typically see their material expenses drop quite a bit. Some manufacturers report savings around 15% when they make the change from old school methods. Beyond saving money, this approach makes good environmental sense too. Factories using FIPFG tend to generate less scrap overall, which means cleaner workspaces and fewer trips to the landfill.
Adaptability to Complex 3D Geometries
FIPFG tech really stands out when it comes to making seals for those tricky shapes and weird surface contours that regular gaskets just can't handle. What makes this system so good is how adaptable it is, which means better sealing performance where accuracy matters most. Plus, designers get much more freedom to play around with their creations since they aren't stuck following old school sealing limitations anymore. According to several industry studies, one of the biggest selling points of FIPFG is its capability to work with all sorts of complicated shapes. This opens up whole new avenues for product development while also boosting the quality across the board in manufacturing settings. When looking at real world applications, FIPFG just works better with these challenging geometries than anything else on the market right now.
Technical Specifications and Material Compatibility
Polyurethane vs. Silicone Formulations
Polyurethane remains the go-to material for Formed-In-Place Foam Gasket (FIPFG) applications thanks to its strong mechanical properties and reasonable price tag. The stuff holds up well over time and doesn't break the bank, which explains why so many manufacturers across different sectors keep coming back to it when they need good performance without spending too much. Silicone options come at a higher cost but offer something special: great resistance to heat changes and flexibility even under tough conditions. These materials work best where things get really hot or cold, or when equipment might be exposed to harsh chemicals that would eat away at cheaper alternatives. For instance, automotive parts exposed to road salt or industrial machinery operating near chemical processing areas often require this kind of protection. When deciding between polyurethane and silicone, companies typically look at what their equipment will actually face day to day rather than just going for the cheapest option available.
Integration with Robotic Production Lines
FIPFG machines work well when connected to robotic production lines, boosting productivity and making automated processes possible. When robots take over, they handle complicated motions needed for precise and repeatable dispensing tasks across different applications. The combination of these technologies means factories can produce large volumes efficiently without compromising on quality control. According to various industry studies, companies implementing automation in their FIPFG operations often see around a 20-25% improvement in efficiency metrics within manufacturing environments. While some might question whether such gains are sustainable long term, most manufacturers report real benefits including faster output rates and better control over day-to-day operations once the systems are properly set up and maintained.
Global Standards and Industry Certifications
Compliance with IP68 and NEMA Ratings
Products from FIPFG need to meet IP68 standards when it comes to dust and water protection, which makes them reliable even in tough environments. The IP68 rating basically means they won't let dust in at all and can handle being submerged in water for extended periods without problems. On top of this, there's also something called NEMA ratings that help determine if these products work well in particular environmental situations, making sure they perform reliably in different industrial settings. These kinds of certifications really matter, particularly in sectors such as aerospace manufacturing and car production, where safety rules and performance expectations just cannot be compromised. Getting certified isn't just about paperwork either it shows companies actually care about producing high quality stuff that works consistently over time.
Quality Assurance in Multi-Country Deployment
Keeping quality control consistent across borders means following all sorts of government rules and international standards. Many FIPFG makers go through the certification process so they know their stuff works the same way no matter where it gets made. When a company has those official stamps of approval, customers can trust that whatever comes out of production meets certain quality benchmarks whether shipped from China or manufactured right here at home. The numbers don't lie either companies that really focus on quality tend to see fewer product returns and complaints down the road, which obviously makes customers happier and builds better brand loyalty over time. At the end of the day, nobody wants to deal with faulty products showing up on store shelves around the world.
FAQ
What is FIPFG technology?
FIPFG technology uses a liquid foam compound to create custom seals by expanding and solidifying, offering superior sealing performance compared to traditional gaskets.
What industries benefit most from FIPFG technology?
FIPFG technology is highly beneficial for the automotive and electronics industries due to its ability to provide robust, dust-resistant, and moisture-resistant seals.
How does CNC automation enhance FIPFG applications?
CNC automation enhances FIPFG applications by providing precise dispensing of foam gaskets, reducing human error, and accommodating complex designs efficiently.
What are the advantages of using FIPFG technology?
The advantages include material efficiency, reduced waste, adaptability to complex 3D geometries, and automatic integration with robotic production lines for enhanced productivity.
