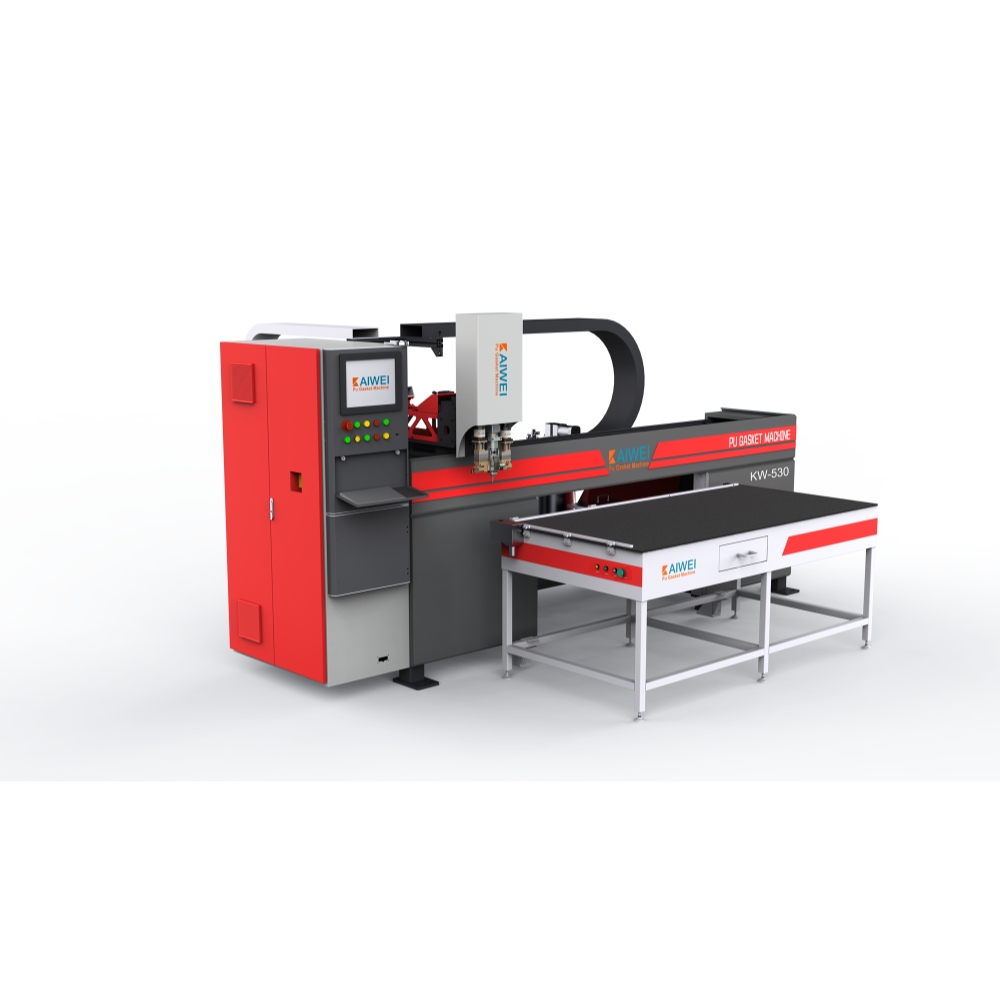

- Customizable Working Range: Max length up to 2500mm (suitable for large workpieces coating).
- Stable Structure: Integrated welded rack (enhanced stability).
- User-Friendly Design: New hybrid head (easier to use & maintain).
- Robot teaching pendant (convenient operation).
- Touch screen control + multi-language switching.
- Industrial PLC (supports MES integration).
- Simple graphic input (no drawing required, just enter dimensions).
- Protection functions: Water shortage protection, glue pressure detection, daily maintenance reminder.
- Cantilevered HMI (150° rotation for easy operation).
- Integrated electrical cabinet (rack-mounted, space-saving & convenient maintenance).
- Integrated welded rack structure.
- Eight-axis motion board.
1. Core Configuration & Parameters
Item |
Details |
Mix Valve |
KW-800 (Gasket Width: 2-60mm) / KW-900 (Gasket Width: 5-30mm) |
Components |
Three component |
Working Stroke |
Constant: 2500×1250×200mm；Micro: 800×600×200mm；Larger: Customizable |
Machine Size |
4100×300×2300mm |
Power Consumption |
3-4KW |
Gasket Width |
Constant: 5-30mm；Micro: 800×600×200mm；Bulk: 2500×1450×200mm |
Mixing Ratio |
1:1-10:1 |
Output |
Constant: 0.6-5g/s；Micro: 0.05-1.5g/s；Larger: 5-60g/s |
Working Environment |
-15°C--55°C |
2. Key Machine Features
3. Optional Systems
A. Teach Pendant System
B. PC System
